Xiamen Wuhao Industry & Trade Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | Wuhao |
| Model Number : | C1-1500 |
| Price : | Negotiatable |
| Payment Terms : | T/T |
| Supply Ability : | 40000 per month |
| Delivery Time : | 15-20 days |

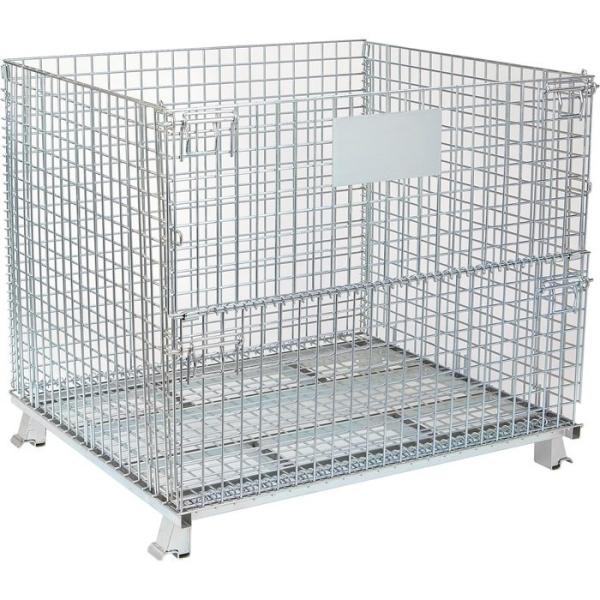

Rigid Collapsible Wire Mesh Container Stackable Wire Cage for Storage
Wire mesh container
| Product Description | Type | Wire basket stillage cagestorage pallet bin |
| Brand | Wuhao | |
| Product Code/SKU | C1-1500 | |
| External Dimensions | 1200x1000x890 mm (LxWxH) | |
| Internal Dimensions | 1150x950x750 mm (LxWxH) | |
| Wire Diameter | Φ5.8 m | |
| Mesh Size | 50x50 mm | |
| Weight | 60 KGs | |
| Loading Capacity | 1500 KGs | |
| Stackable | 4 Tiers | |
| Surface Finishment | Electro zinc plated, paint, powder coating, hot dip galvanized | |
| Product lifetime | up to 5 years under proper handling | |
| Scale | Heavy duty | |
| Application | Warehouse, supermarket, logistics industry, packing industry, wine industry etc. | |
| MOQ | 1*20GP | |
| Delivery Time | 7-15 days after receiving payment | |
| Terms of Payment | T/T | |
| Port | Guangzhou, Xiamen, Shenzhen, Shanghai | |
| Packaging | Plastic banding or with stretch film wrapped, or as client requirement | |
| 20" Container | about 152pcs | |
| 40" Container | about 324pcs | |
| Remark | Can make products as custom specification | |
| Product Features | ♦ Stack up to three cages high easily. | |
| ♦ Half drop front gate, allows easy access into cage even when stacked. | ||
| ♦ Standard size, or customized sizes available | ||
| ♦ Be made of dot welded line steel 5.6 mm with the bottom part of U shape steel weld support to reach the enforcement of the structure. | ||
| ♦ Galvanised for all weather protection. | ||
| If you have any questions please do not hesitate to contact us. | ||
Components of Wire Mesh Container:
A. Bending-shaped handle latch, open and lock the door naturally.
B. U-shaped down beam, reinforce loading capacity.
C. Particular structure of baseplate, ensure the stability when stacked.
D. Spring hinge connect the reticular wire mesh, foldable when not in use.
E. Triangular metal clamp on the top to ensure the intensity of the spring hinge.
F. Auxiliary strengthened rib structure, ensure the stability when unfold.
G. Multiple spot welding technique, ensure the solidity and durability.
H, Independent bolt and drop gate for easy to fetch products when stacked.
Regular production models
C Series | |||||||||
| Item No. | Specification | Wire diameter | Mesh gauge | Load capacity | Self-weight | Feet height | Load quantity | ||
| External size (L*W*H)(mm) | Internal size (L*W*H)(mm) | (mm) | (mm) | (kg) | (kg)±2% | (mm) | 20' FT | 40 ' FT | |
| C1-1500 | 1200*100*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 60 | 100 | 144 | 324 |
| C1-1300 | 5.6 | 50*50 | 1300 | 55 | |||||
| C2-1000 | 5.8 | 50*100 | 1000 | 53 | |||||
| C2-800 | 5.6 | 50*100 | 800 | 48 | |||||
| C3-2000 | 6.3 | 50*50 | 2000 | 68 | |||||
(1) Customized size: the size, wire diameter, mesh gauge can be customized as your design. (2) Surface treatment: galvanized or powder coating. | |||||||||
Company information:
Xiamen Wuhao Industry & Trade Co., Ltd. is one of the large-sized professional manufacturers of warehouse equipments, such as Wire Container, Wire Cage, Plastic crate, Turnover box, Plastic Pallet etc. Those products, being important facilities for material handling, transport, storage, the wire containers are widely applied to the industries of hardware, machinery, electronics, tiered warehouse, material logistics, etc., and the plastic pallet, crate, box, are widely applied to the fields of food, aquatic products, chemicals, clothing, pharmaceuticals, tobacco, docks, warehouse logistics, etc.
Our product diversification as following:
|
|
