Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity

Xiamen Wuhao Industry & Trade Co., Ltd.
Contact Now
    Buy cheap Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity from wholesalers

    Buy cheap Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity from wholesalers
    • Buy cheap Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity from wholesalers
    • Buy cheap Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity from wholesalers

    Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity

    Ask Lasest Price
    Brand Name : Wuhao
    Model Number : C2-1000
    Price : Negotiatable
    Payment Terms : T/T
    Supply Ability : 40000 per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity

    Storage Container for Warehouse Stackable Wire Container Foldable

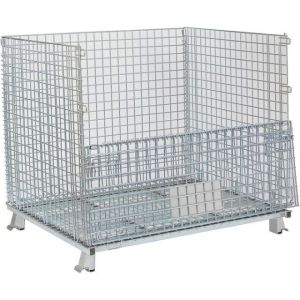

    Wire mesh container


    High-visibility parts storage for manufacturing and warehousing. Features reinforced under carriage and support legs, fully galvanized finish and a collapsible, stackable design for efficient storage. Folds flat for space-saving storage, with front drop-gate for easy access. Dimensions available, Material Wire mesh, Foldable Yes, Flared legs allow for easy 4-high stacking.


    • 1200L x 1000W x 890H mm/ 1000L x 800W x 840H mm/ 800L x 600W x 640H mm
    • Rugged 2-gauge 2in x 2in wire mesh with reinforced understructure
    • Many capacity available
    • Flared legs allow for easy 4-high stacking


    Castors options

    Roller bearing swivel casters are made of high-impact polypropylene, with 2 locking casters.

    Two swivel locking poly casters and two rigid poly casters

    Other options

    It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters and so on.


    Specification:


    Product DescriptionBrandWUHAO
    Typewire container, wire mesh container
    Product codeC2-1000
    Dimension(L*W*H)1200x1000x890mm
    Mesh size50x100mm
    Wire guage5.8mm
    Weight53kg
    Loading Capacity1000kg
    Stackabilityfour-layers
    MaterialSteel wire and cold-rolled steel plate
    FinishingZinc plating, powder coat
    Quantity/20Gp144 units
    Quantity/40Gp324 units
    Product shelf lifeup to 3 years under proper handling
    MOQno
    Applicationwarehouse, supermarket, logistics, etc.

    Regular production models



    C Series


    Item No.

    Specification

    Wire diameterMesh gaugeLoad capacitySelf-weightFeet height

    Load quantity

    External size (L*W*H)(mm)Internal size (L*W*H)(mm)

    (mm)


    (mm)


    (kg)


    (kg)±2%


    (mm)


    20' FT


    40 ' FT

    C1-1500

    1200*100*890

    1150*950*750

    5.850*50150060

    100

    144

    324

    C1-13005.650*50130055
    C2-10005.850*100100053
    C2-8005.650*10080048
    C3-20006.350*50200068

    (1) Customized size: the size, wire diameter, mesh gauge can be customized as your design.

    (2) Surface treatment: galvanized or powder coating.


    Features:


    • Collapses in seconds without the need of any tools
    • Drop down gate with self locking latches provides access even when stacked.
    • Zinc plated finish
    • Easy to operate or fold: one or two person’s operation
    • Ergonomic: Easy access to the products
    • Good product visibility
    • No detachable parts or no loose parts
